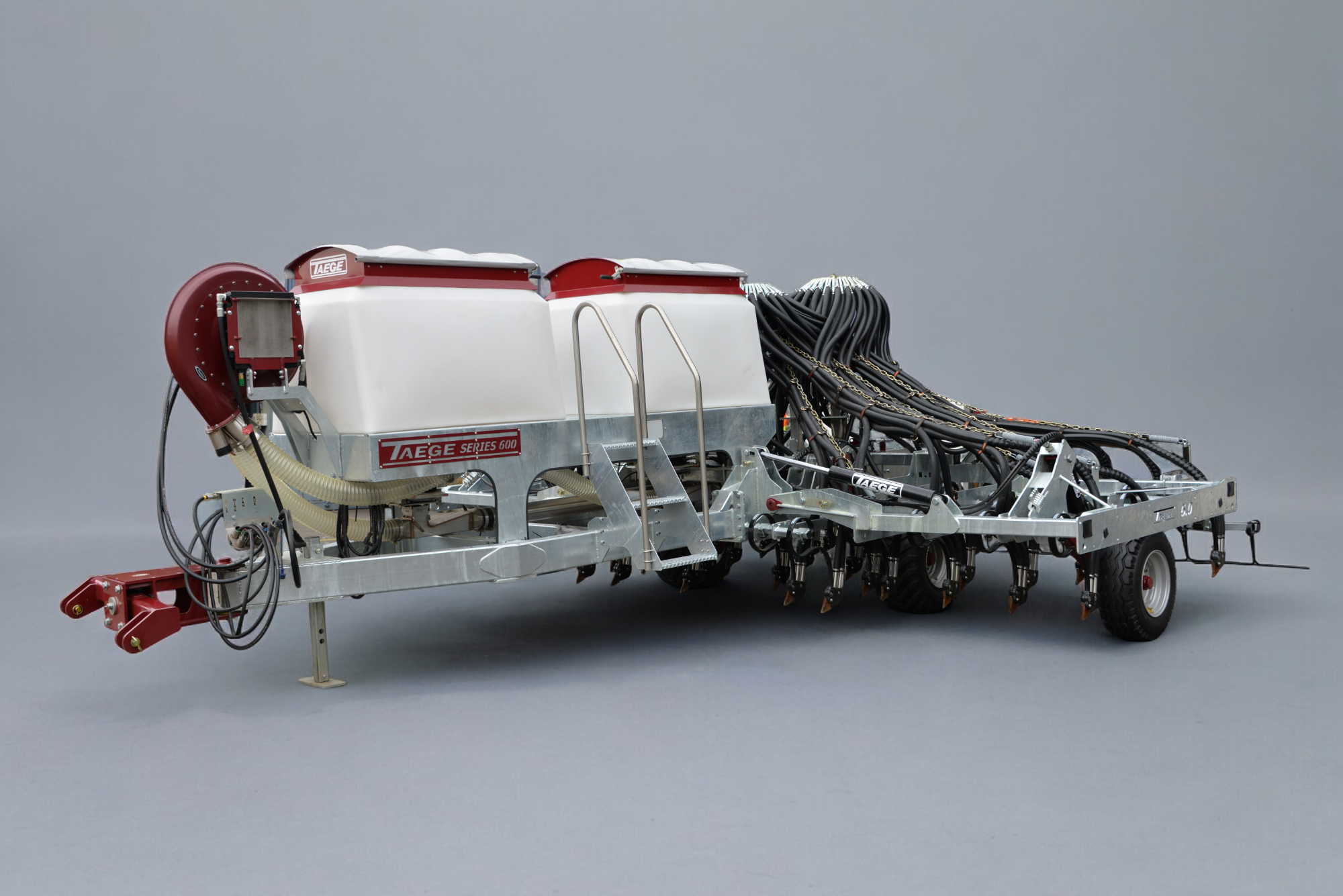

Airseeder AS600 Series
“Tilth grows seed. This is what we’re all about at Taeges”
Our Air Seeder is a machine that has been in demand for some time, with large hydraulic wings and 6.0m working width, the AS600 delivers exceptional results. Competitively priced and offering great value, the Taege Airseeder offers a full range of complement upgrades to suit your individual needs.
- Available in 6m or custom build size options.
- Exceptional contour following is achieved due to the slot mounted wings.
- Hydraulically controlled lifting on all four legs giving you easy depth control with the ram spacers.
- Slot mounted wings allow for drop below and raise above horizontal for undulating ground and hip country variations.
- Adjustable front draw bar angle for easy leveling.
Standard features
- 49 outlet distributors
- Twin 1400L high rise bins with retractable lids
- Small seed insert
- Standard, medium and high speed cassette
- Heavy duty Forestry tyres (400/60-15.5 – 20ply)
- Wing Tyres 10.0/75-15.3
- Bolt on rear draw bar
- Electronic touch screen monitor
- 2-point linkage heavy duty draw bar
- 6.0m contour following Taege harrows
- Safety rails
- Hydraulic folding
Optional upgrades
- M3 Hopper for slug bait, clover seed and
broadcast - Hydraulic hose extension for rear implements
- LED light kit with hazard panels
- 12mm Heavy Duty Harrows
Photos

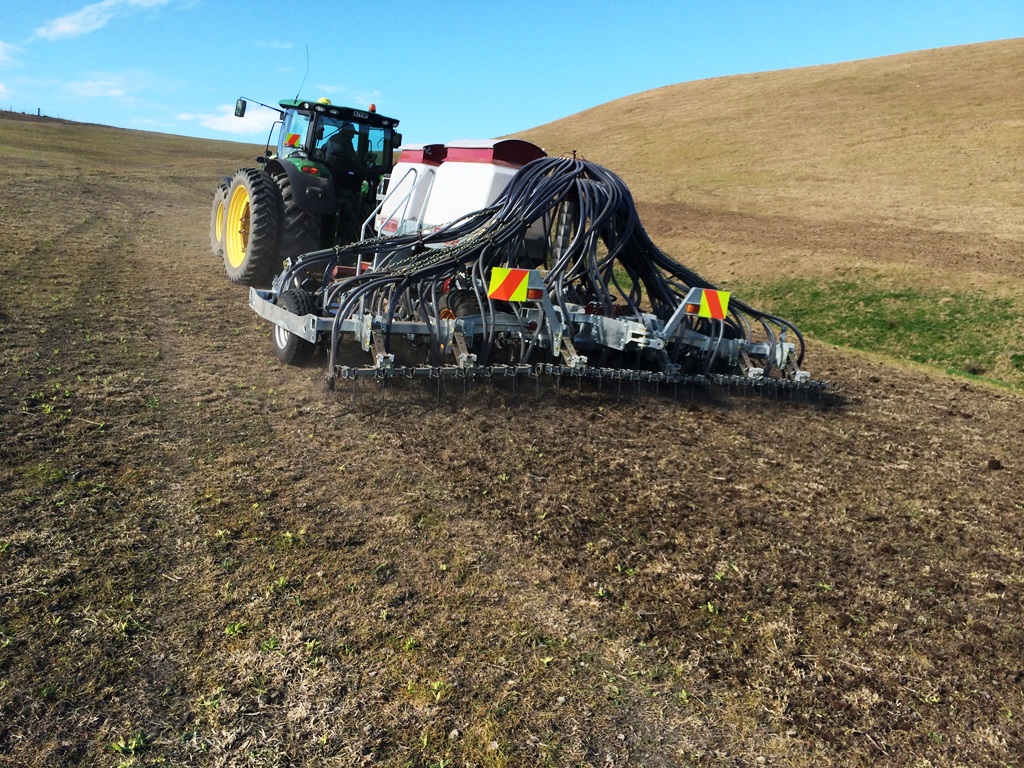

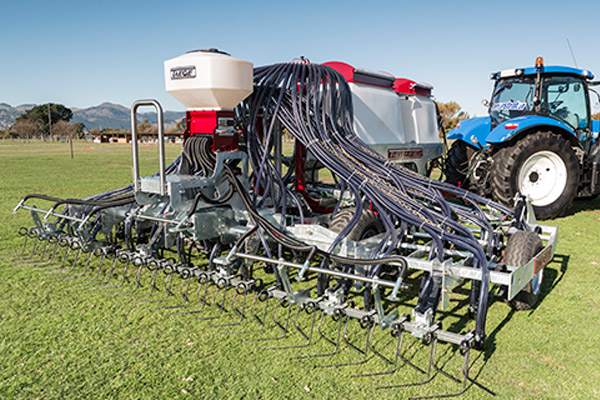

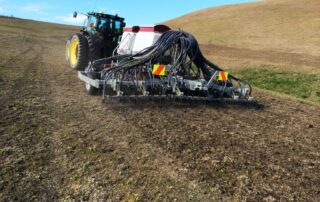

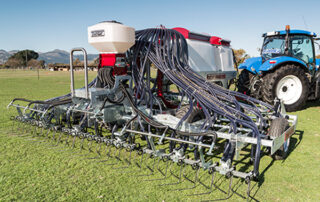

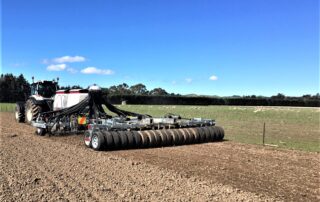

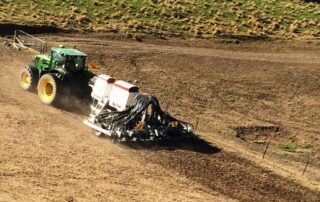

AS600 Air Seeder
Gullwing, contour following and trash clearance are maintained, and complimented with features such as heavy duty tyres and 2-point linkage drawbar. Legendary Taege ‘S’ tynes provide performance rivalling larger European machinery.

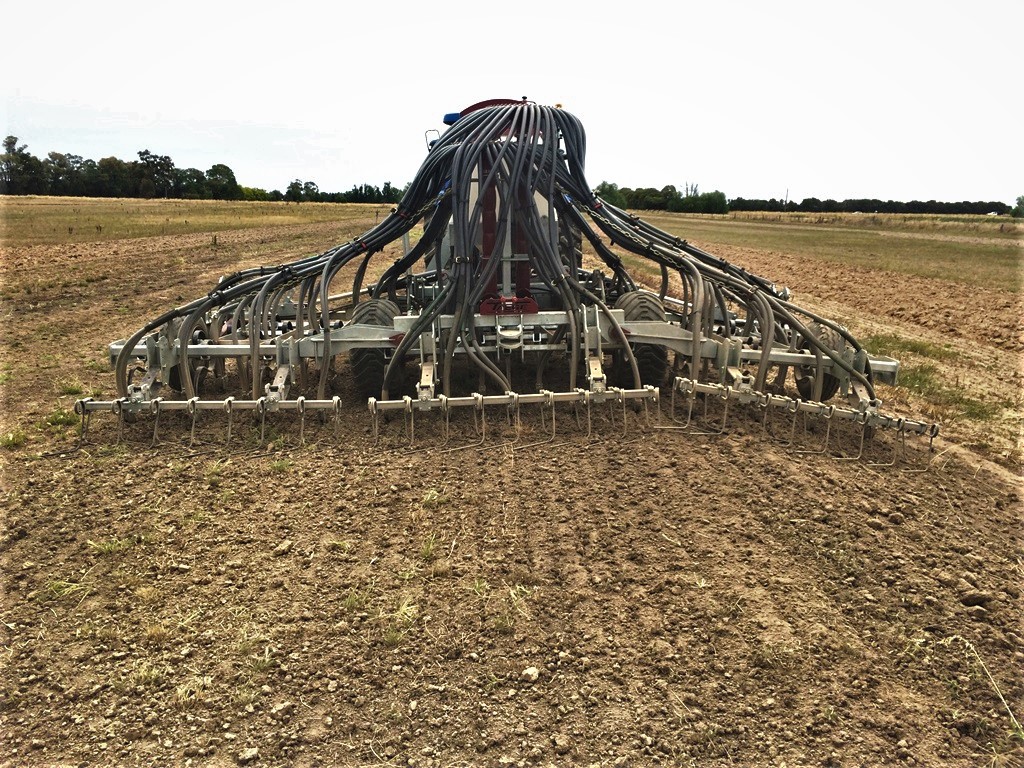

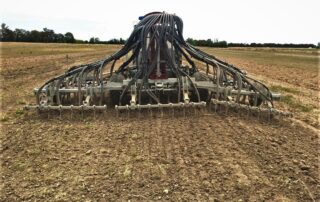

This machine follows ground contours with offset depth wheels, allowing for flex while maintaining stability and eliminating the formation of ground corrugations.

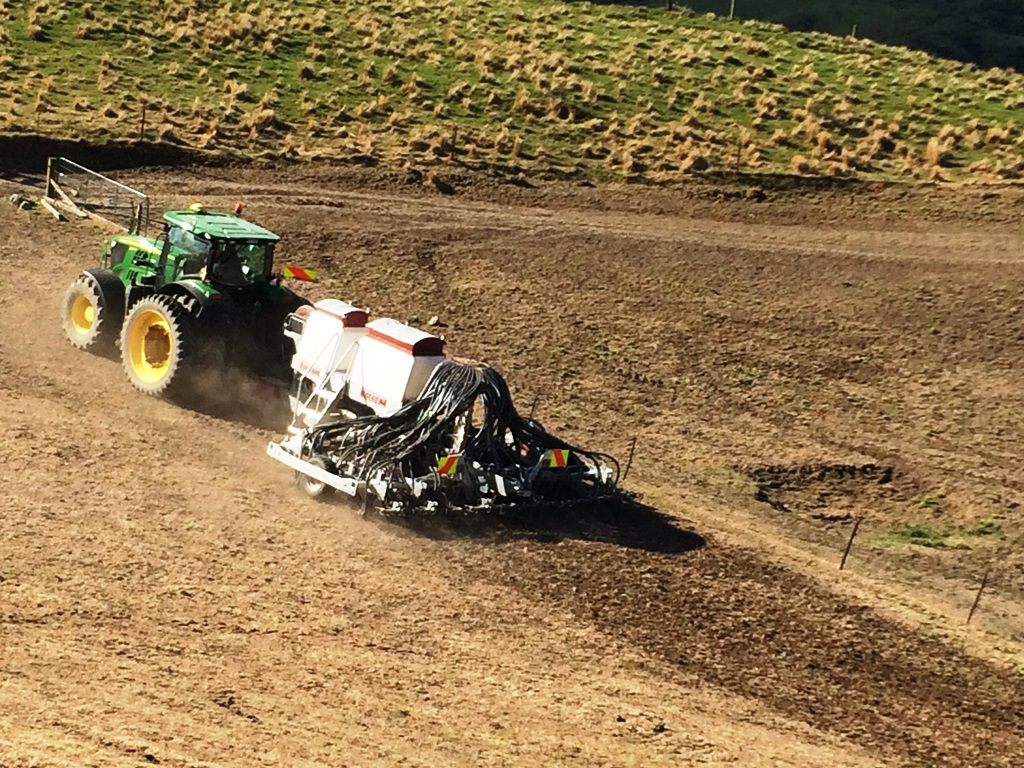

Experience all that a Taege Air Seeder has to offer. With tall towers, to drill correctly especially on the uphill side of the steepest terrain.
| Model | AS600 |
|---|---|
| Size | 6.0m Air Seeder |
| Row spacing (mm) | 121 |
| Sowing width (mm) | 5856 |
| Overall width (mm) | 6300 |
| Overall height (mm) | – |
| Transport width (mm) | 3000 |
| Number of drops | 49 |
| Number of tyne rows | 4.5 |
| Tyne row stagger (mm) | 590 |
| Seed box capacity (L) | 1400 |
| Fert box capacity (L) | 1400 |
| Working speed (kph) | 2-14 |
| Tractor HP Required (min) | 140 |
| Approx. weight (kg) | 4300 |
| Hydraulic fan | 30L per minute |
“This drill has a considerable amount of technology. In my opinion, in some areas this is actually better than larger, heavier and more expensive European drills.”
All Taege Air Seeders come with:
Adjustable harrows: These are an option that gives great results by covering the seed planted and ensuring good seed to soil contact.

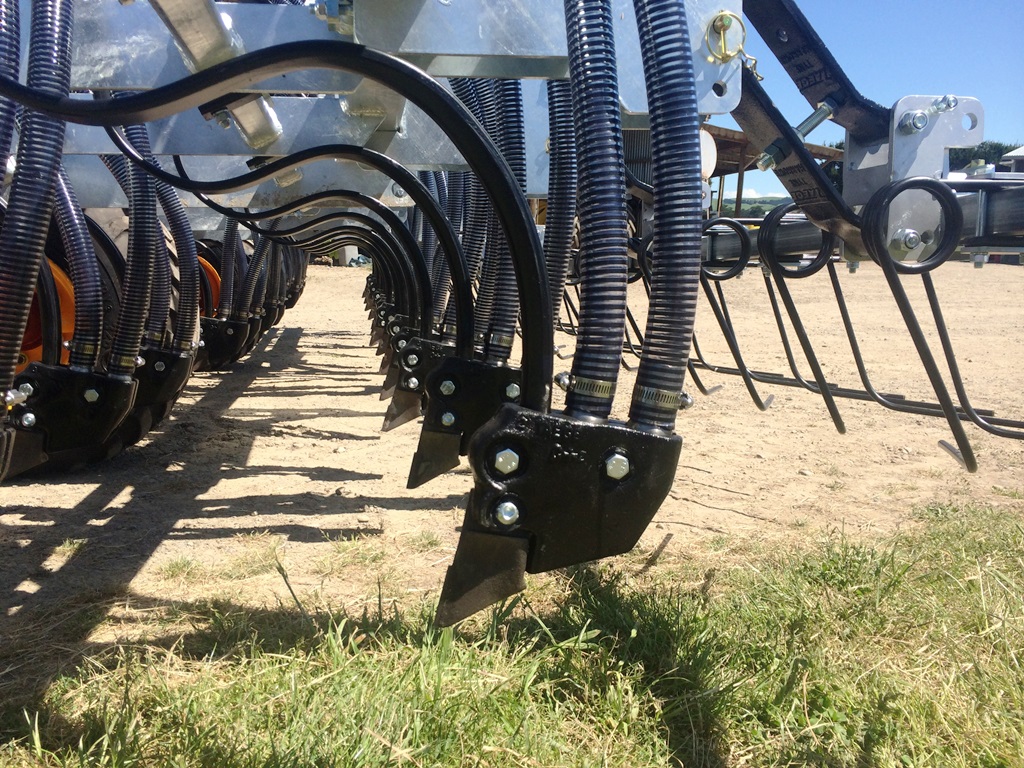

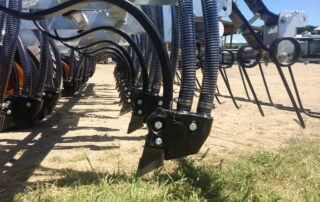

Very flexible ‘S’ Tynes: The ‘S’ Tynes are set on a patented angle combined with the Taege 3-piece boots and hard wearing narrow tungsten faced tips – its a vastly different set up to other tyne drills.
Computerized sponge metering system: This system is standard on all models and provides fast, easy and accurate calibration without the risk of seed damage.
Strong, fully welded, hot dipped galvanized frame and brackets: Ensuring the longevity of your investment.
“The machine is cost effective in the respect that it has a significantly lower cost of ownership than its disc drill counterparts in both initial outlay and running costs per ha.
This drill has a considerable amount of technology.
In my opinion, in some areas this is actually better than larger, heavier and more expensive European drills. Given that it’s kiwi-made and they are doing a bloody good job of it, with exciting things to come in the future, why wouldn’t you support them?”
Jaiden Drough, New Equipment Tester, Farm Trader.
