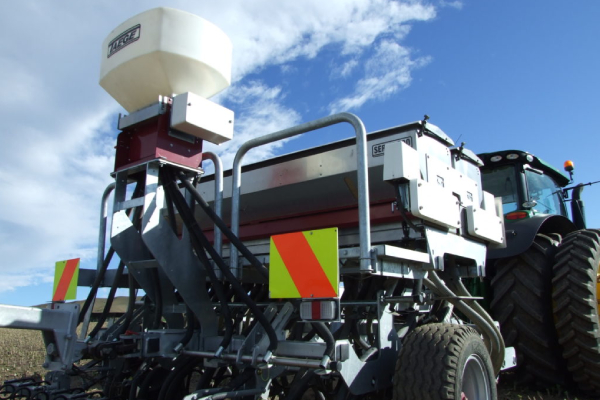

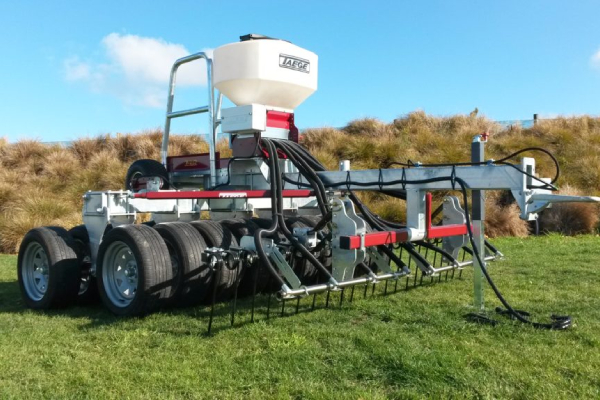

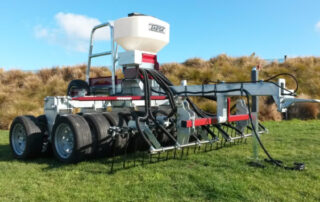

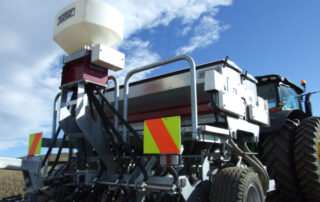

Taege M3 Metering Systems
“Universal Base! This is what we’re all about at Taeges!”
Our universal base system, giving you the flexibility to use our M3 Metering system on all equipment
- Non-pressurized metering system.
- Ability to broadcast seed, slug bait or custom usage.
- Gravity, electric air assist or full air seed dispersal options.
- 200l – 400l hopper sizes available.
- Universal base giving the ability to fit not only Taege equipment but all other machinery.
Photos
Specifications
| options | Gravity | Electric Fan | Hydraulic Fan | Air assist – using existing air supply | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of drops | 8 | 8 | 6-15 | 8 | ||||||||
| Standard Seed delivery method. (others available) | broadcast | broadcast | broadcast | broadcast | ||||||||

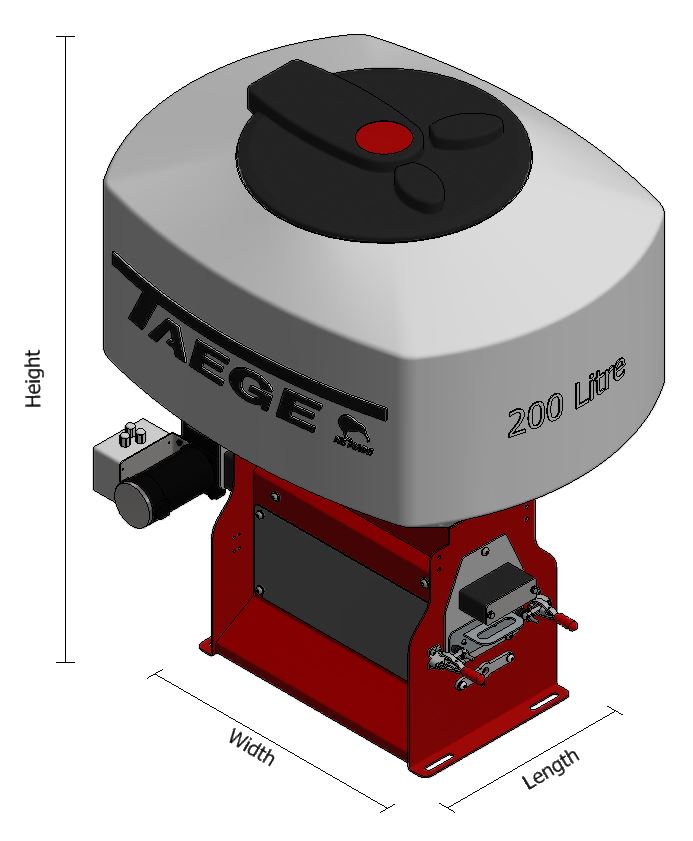

| Seed box/bin capacity | 40L | 200L | 400L | 40L | 200L | 400L | 40L | 200L | 400L | 40L | 200L | 400L |
| Overall width (mm) | 745 | 930 | 930 | 745 | 930 | 930 | 745 | 930 | 930 | 745 | 930 | 930 |
| Overall height (mm) | 710 | 1065 | 1425 | 745 | 1065 | 1425 | 820 | 1180 | 1540 | 710 | 1065 | 1425 |
| Overall length (mm) | 390 | 700 | 700 | 440 | 700 | 700 | 390 | 700 | 700 | 625 | 805 | 805 |
All Taege M3 Metering systems come with:

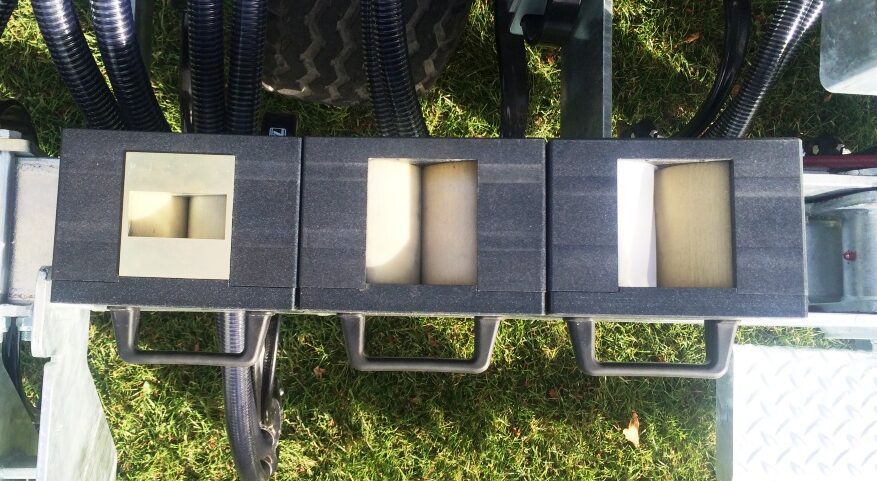

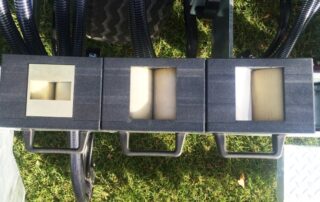

Computerised sponge metering system: Standard on all models, providing fast, easy and accurate calibration without the risk of seed damage.
Built to Taeges excellent building design.

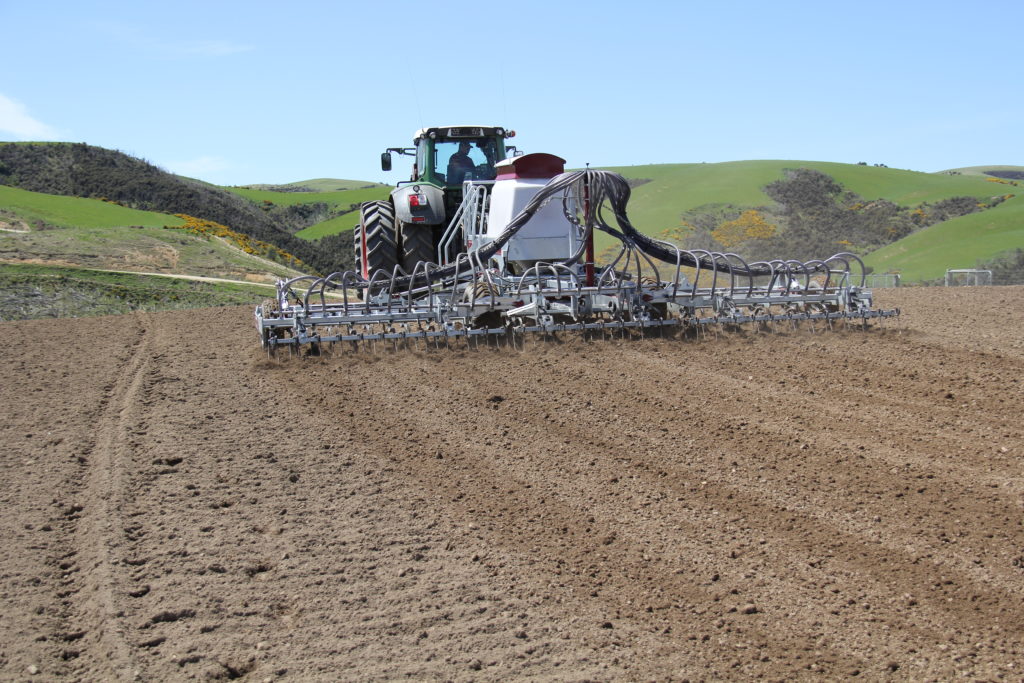

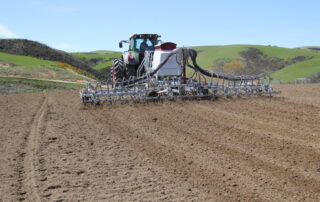

Seed dispersal options
Gravity fed seed dispersal option: Best utilised on equipment for accurate metering of seed or product spanning up to a width of 3.3m
Air assisted seed dispersal option: Best utilised on equipment for accurate metering of seed or product spanning up to a width from 3.3m – 4.5m
Full Air/Hydraulic seed dispersal option: Best utilised on machinery for accurate metering of seed or product spanning up to a width from 4.5m – 8m.
