300 Series Air Seeders
“Tilth grows seed. This is what we’re all about at Taeges”
Built on the proven Taege drill base, our Air Seeder is a machine that has been in demand for some time. Competitively priced and offering great value, the Taege Airseeder offers a full range of complement upgrades to suit your individual needs.
- Available in 3.1m, 3.4m or 3.6m.
- 25 tynes over 3m, 27 tynes over 3.4m and 29 tynes over 3.6m with 121mm spacing.
- 850 litre hoppers.
- Patented live tyne angle giving you excellent penetration and trash clearing.
- Ability to drill around corners.
- Contour following for sloping or uneven ground.
- Full complement of upgrades to suit your individual requirements.
- Phasing Ram system used to give even depth of seed planting.
- Simple construction, less moving parts reduces down-time, repair and maintenance costs.
Standard features
- 25 to 29 outlet distributors
- Twin 850L high rise bins with retractable lids
- Bolt on rear draw bar
- Electronic touch screen monitor
- Small seed insert
- Standard cassette
- High speed cassette
- Heavy Duty Kevlar 400/60 x 15.5 -18ply Tyre
Optional upgrades
- M3 hopper (air assist)
- Rear draw bar steep angle/ Gully Knuckle
- 2-point linkage heavy duty draw bar
- 1100 litre extension
- 3.1m or 3.6m contour following Taege harrows
- Road transport LED light kit

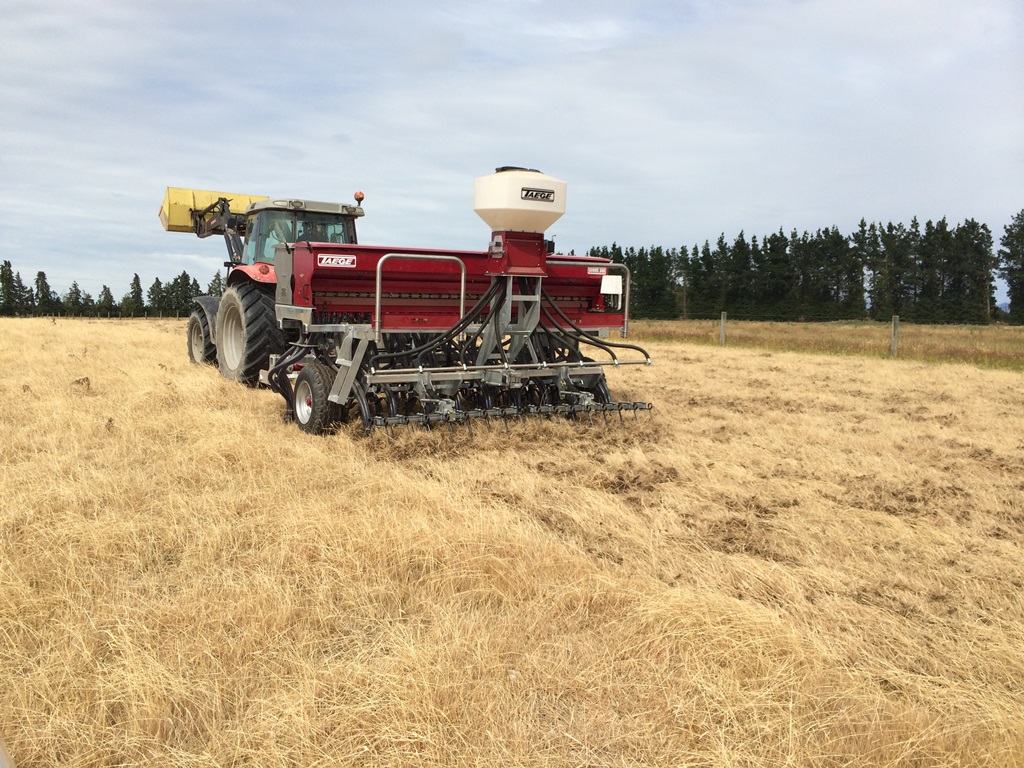

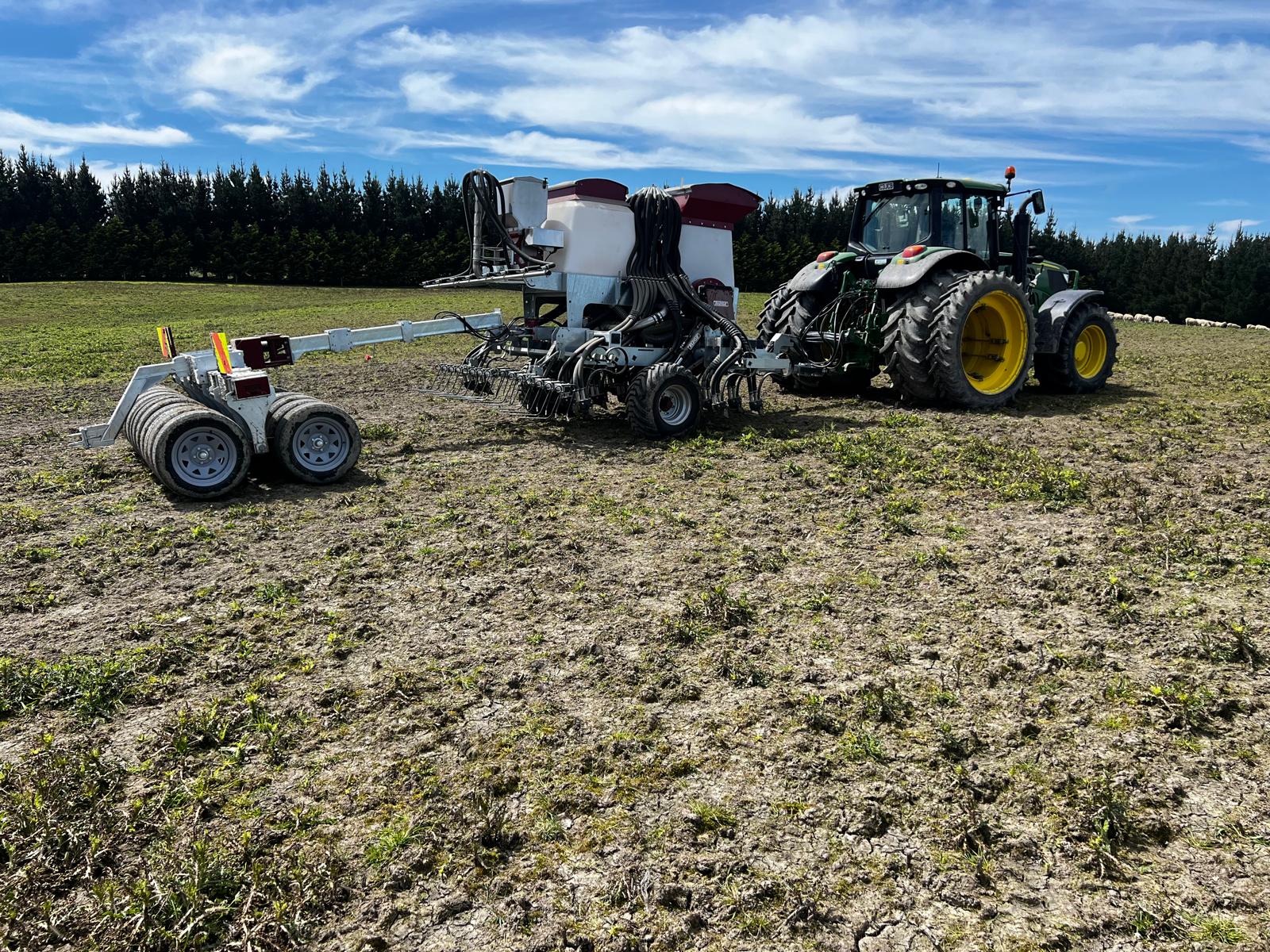

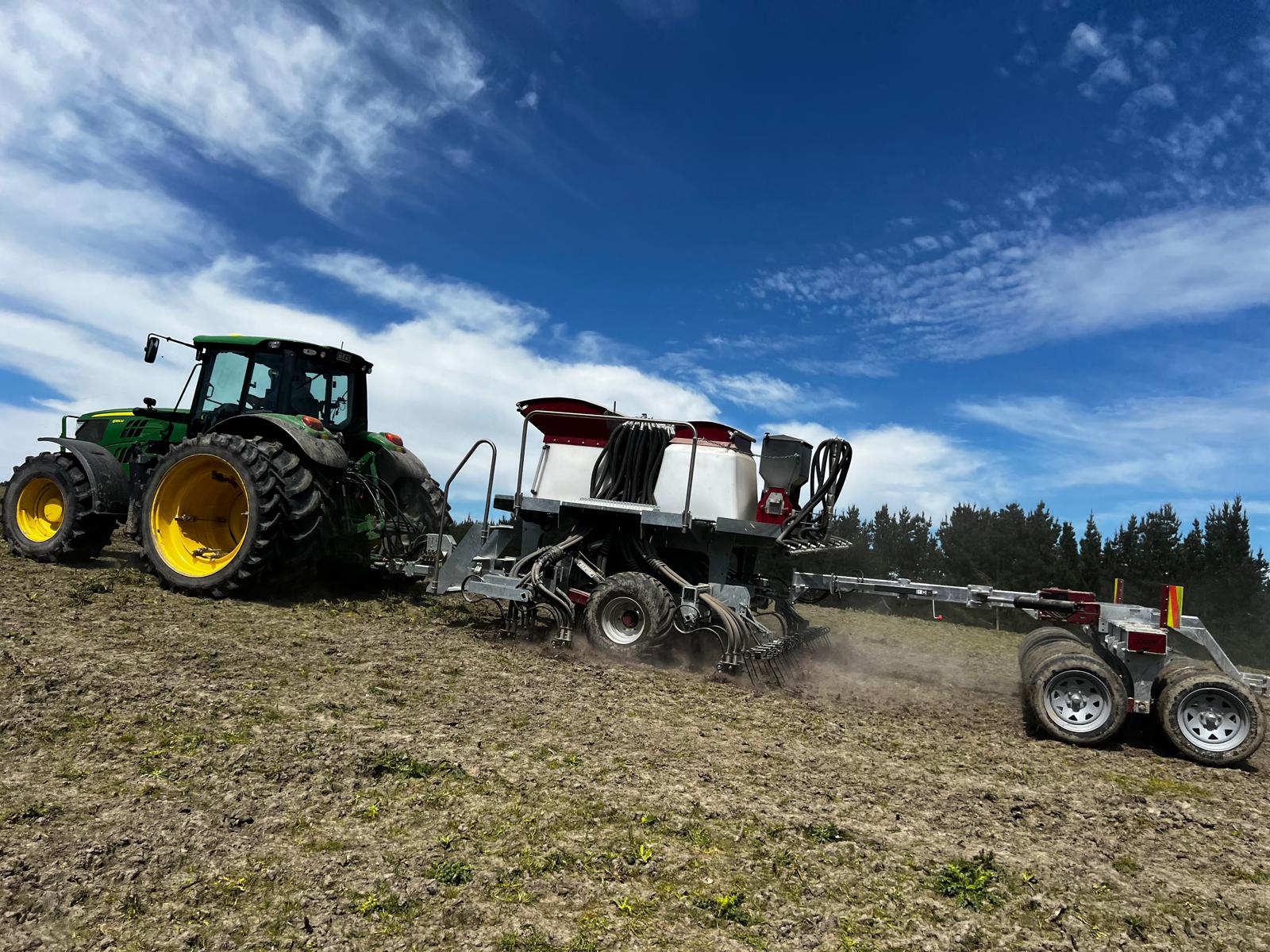

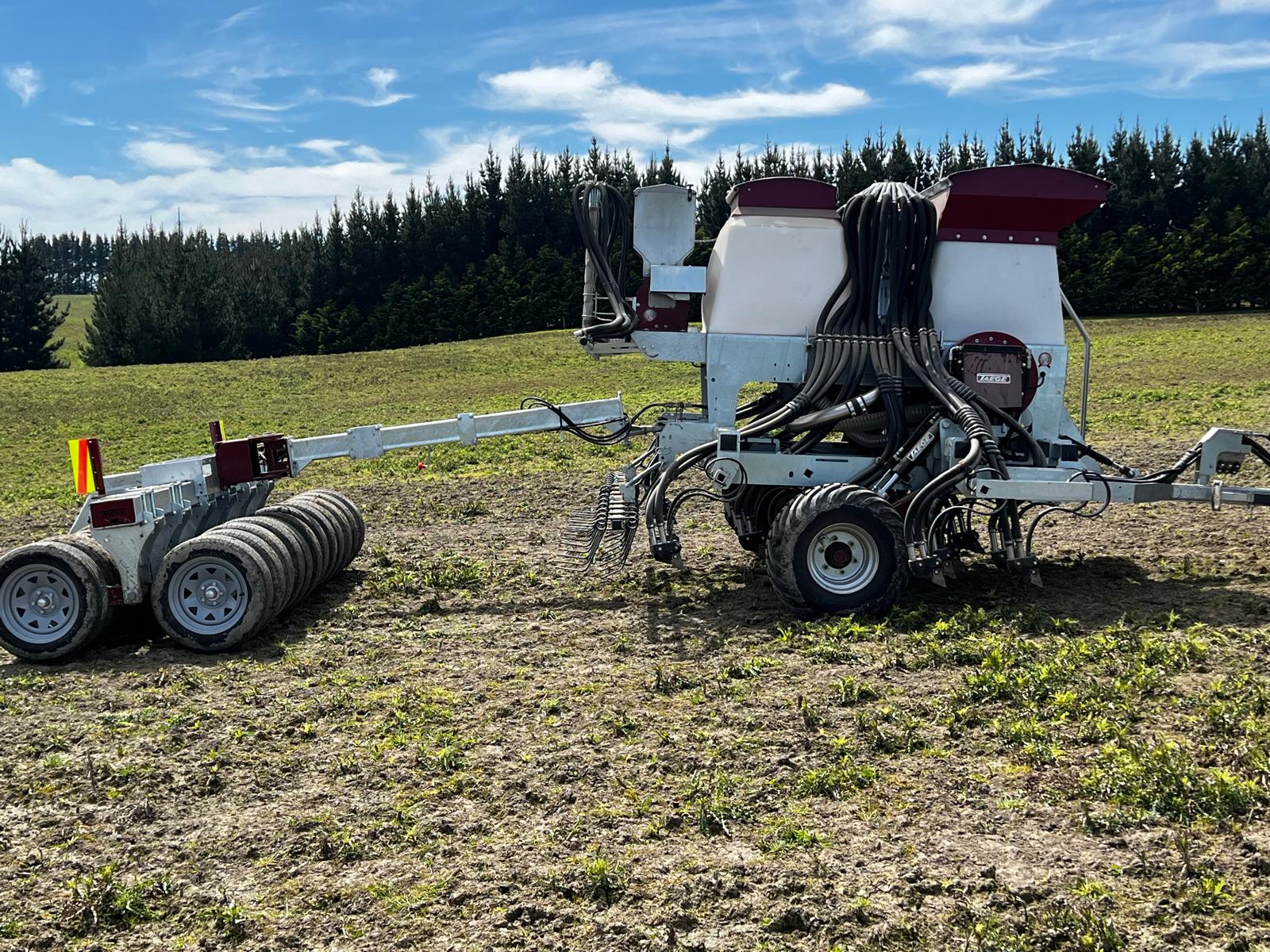

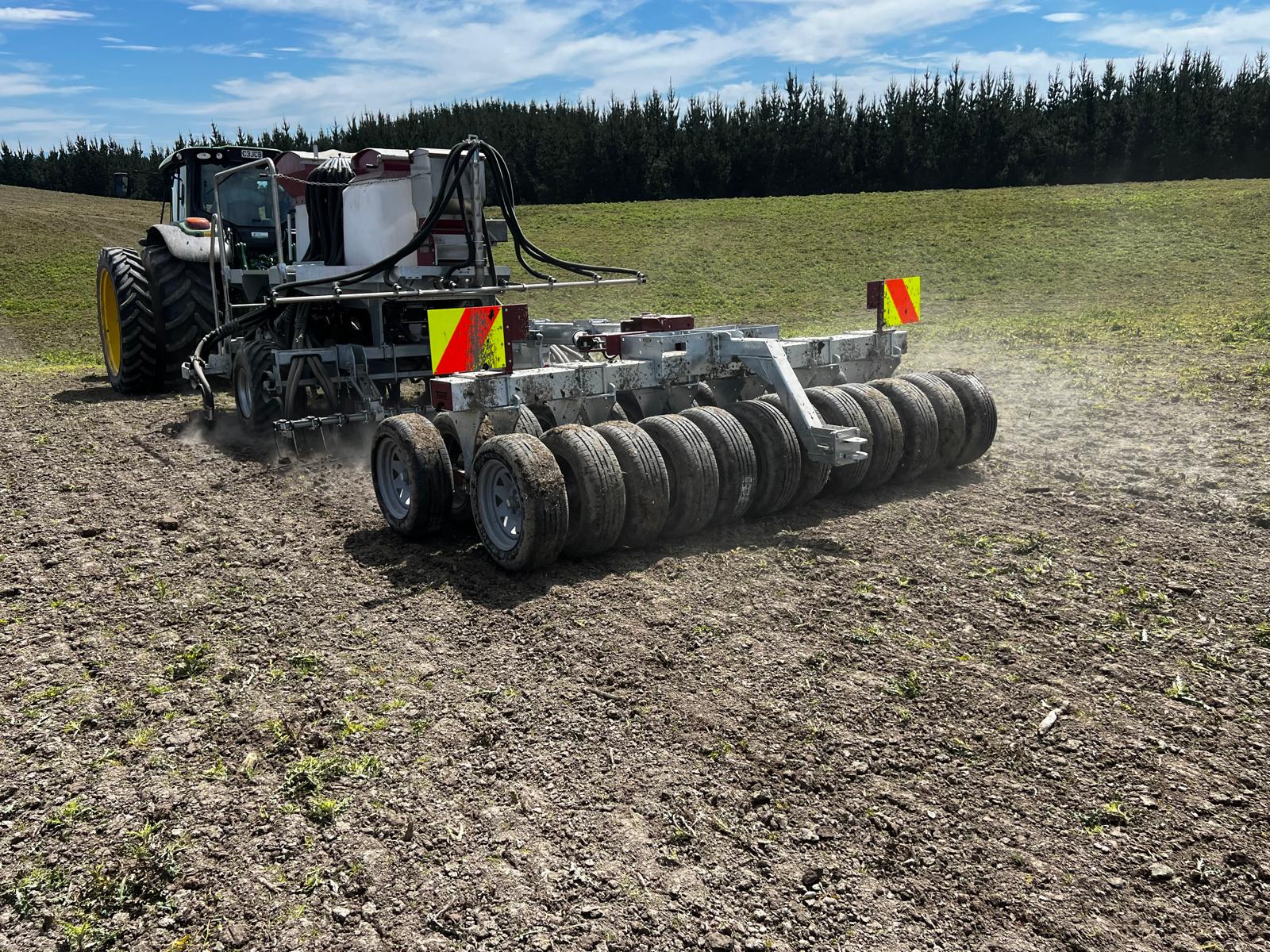

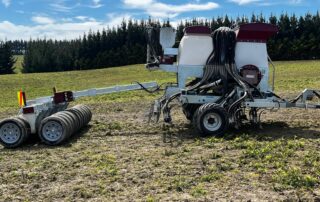

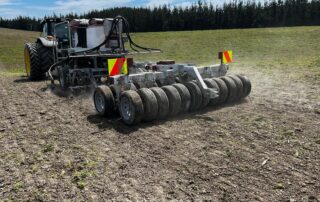

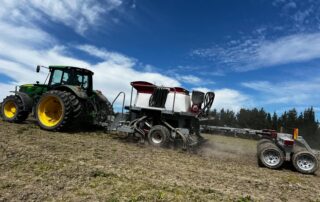

Photos

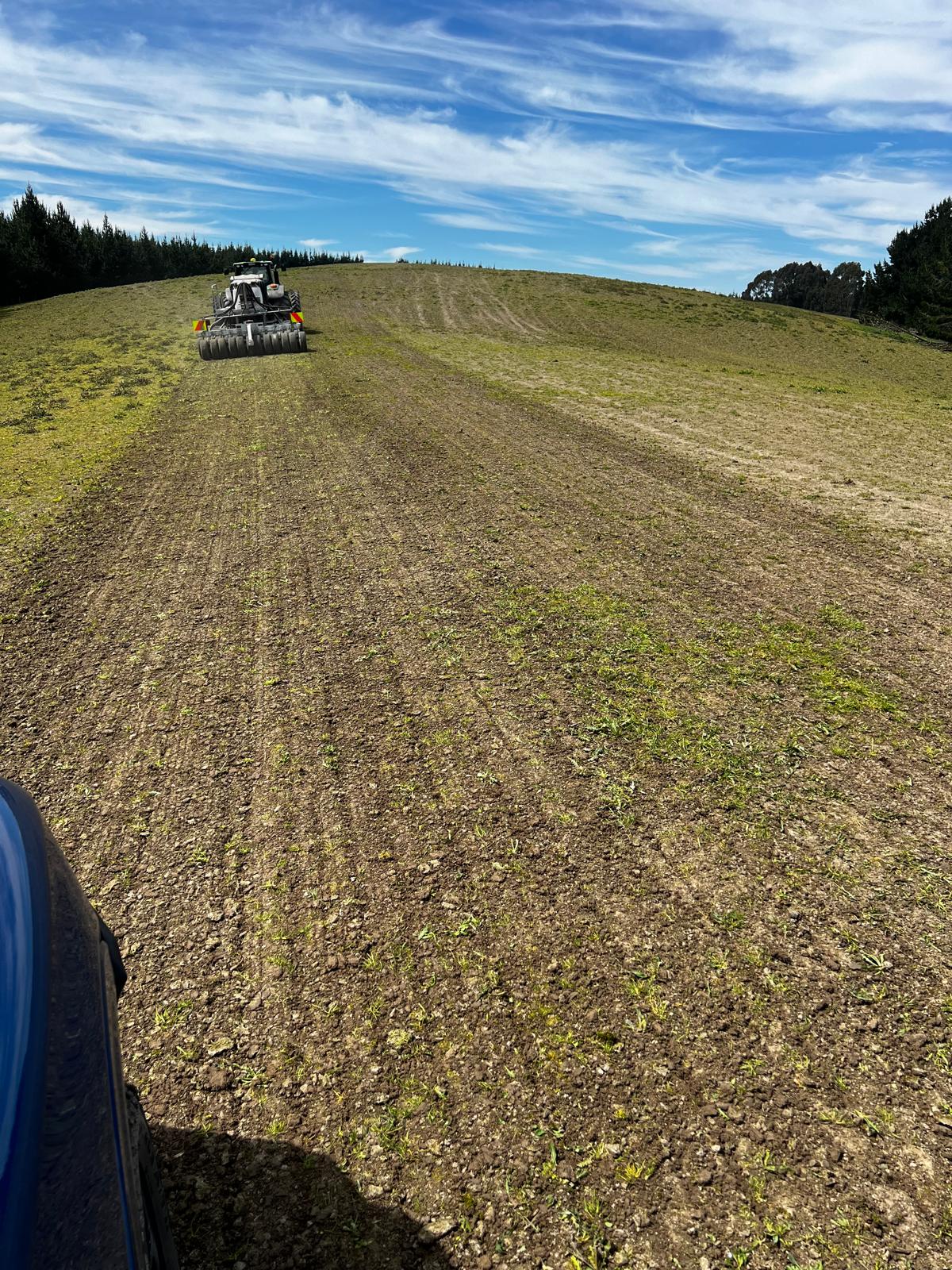

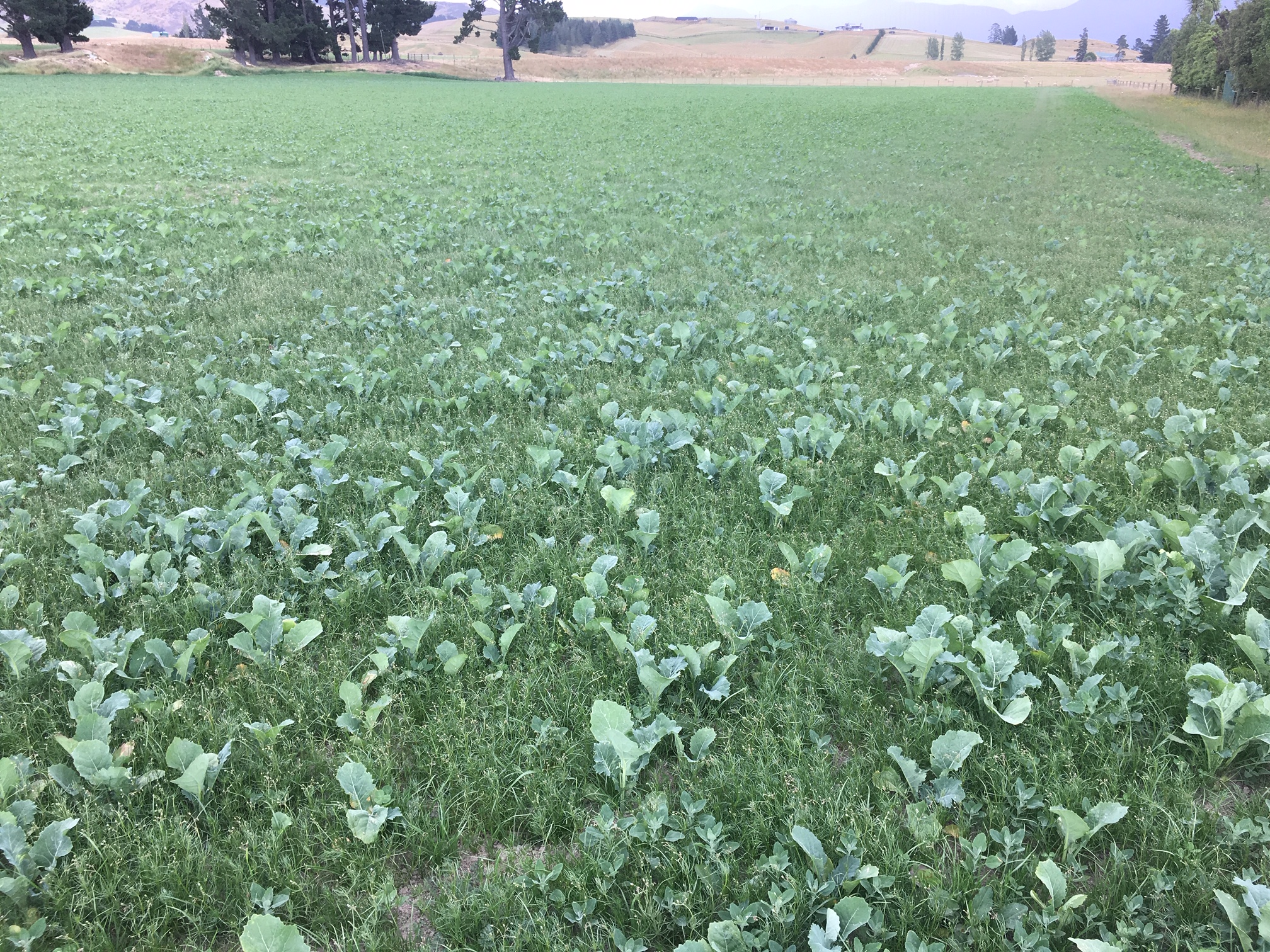

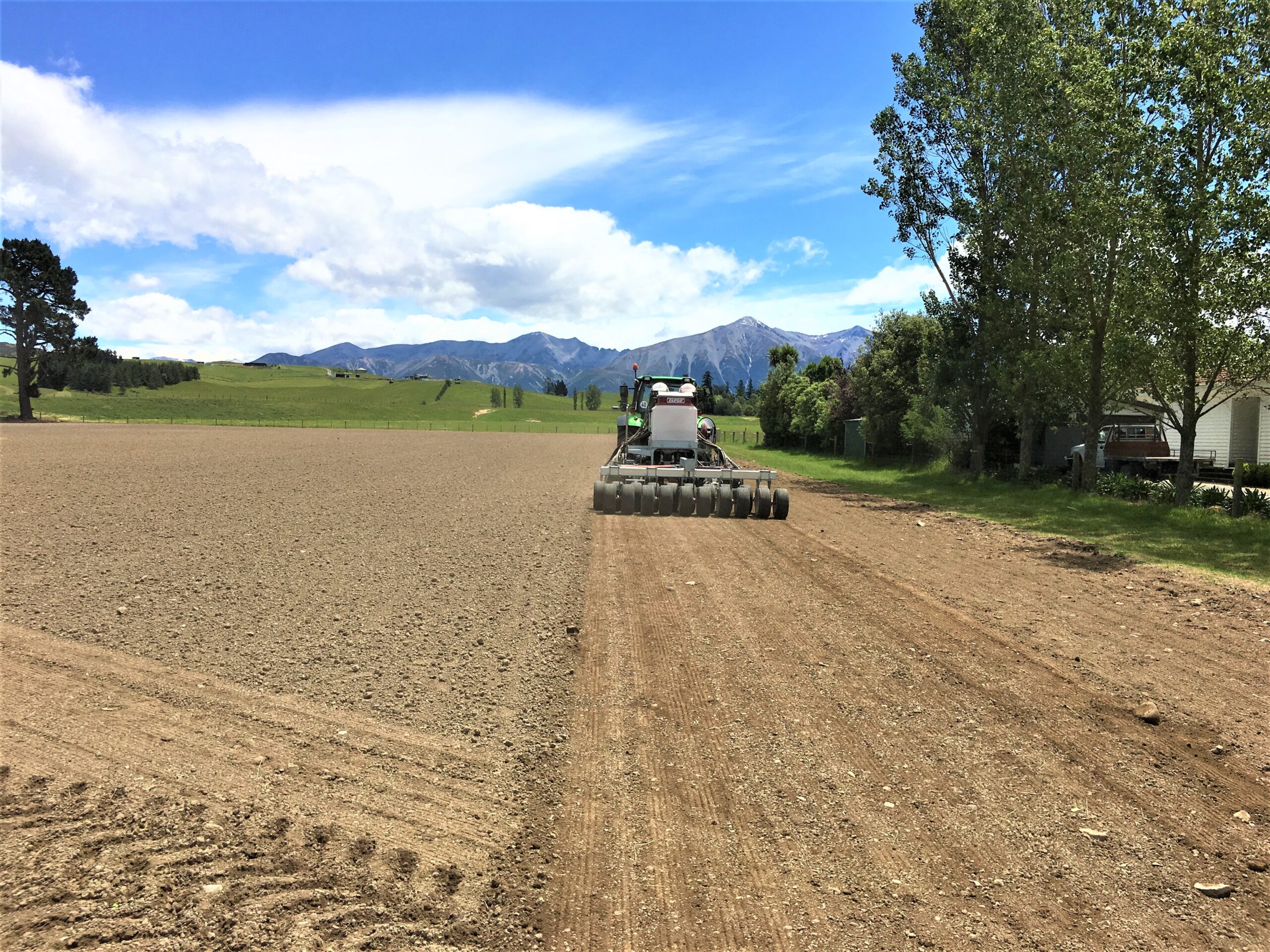

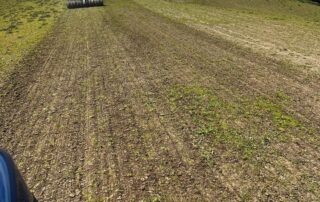

Before / After

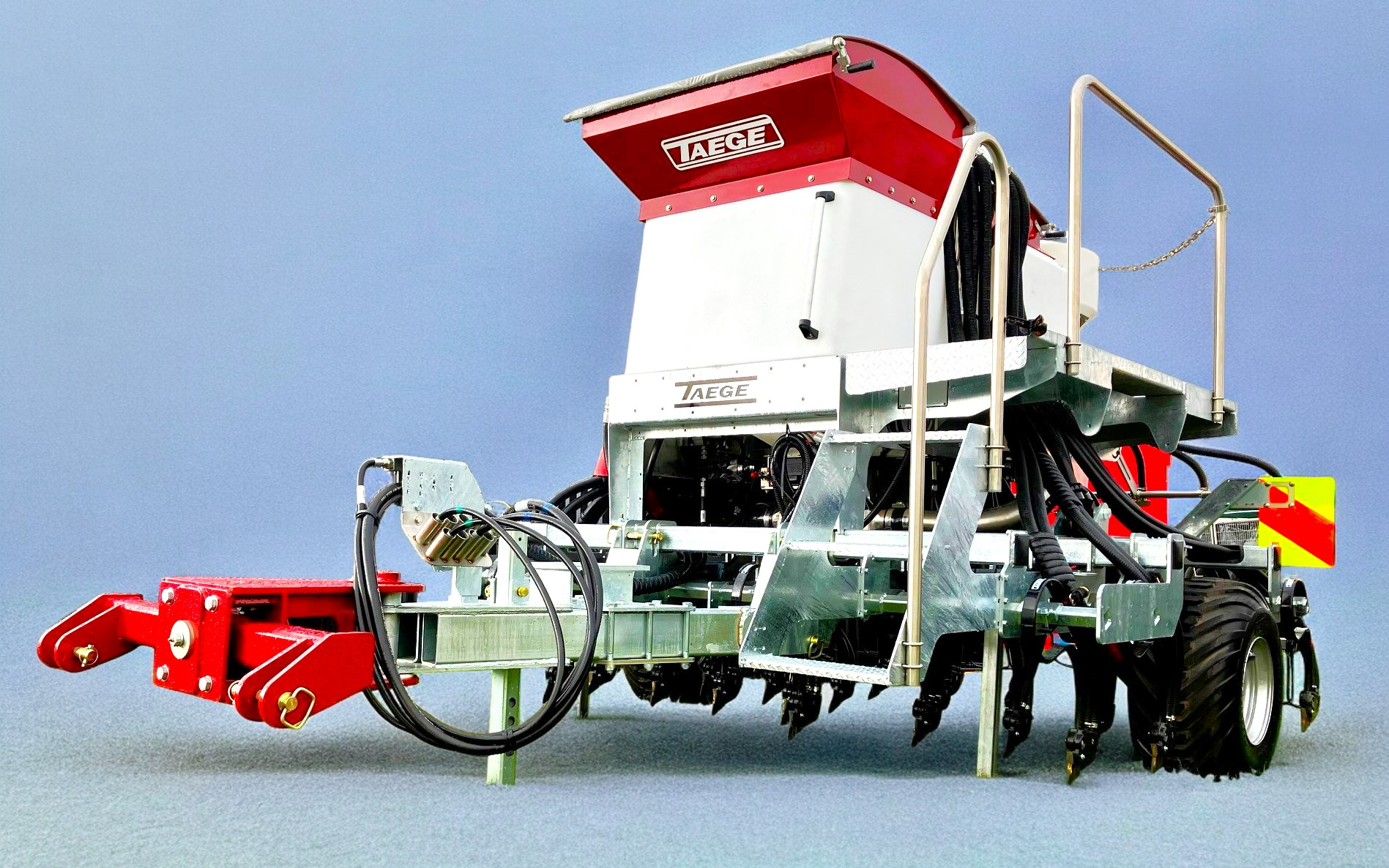

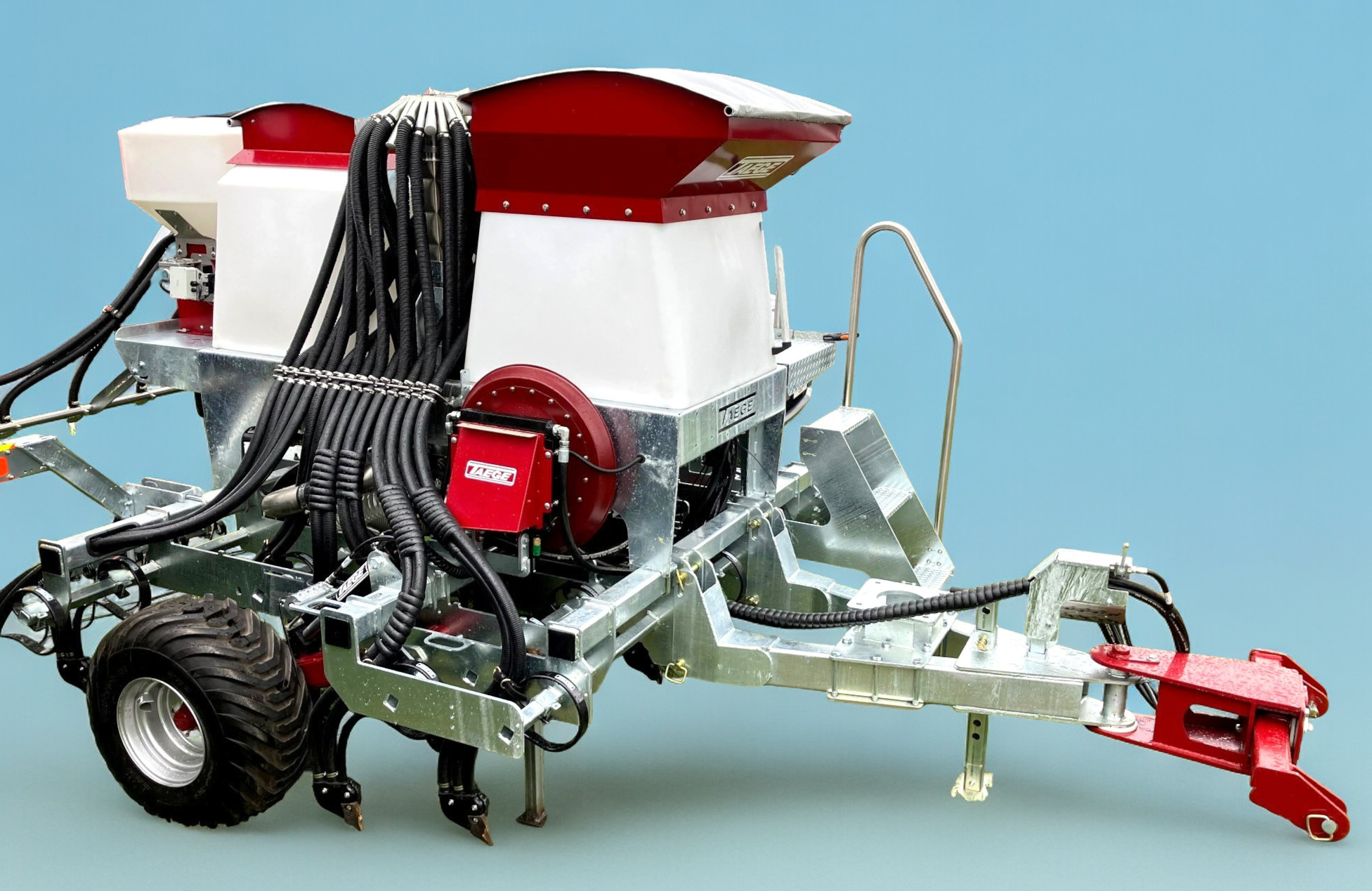

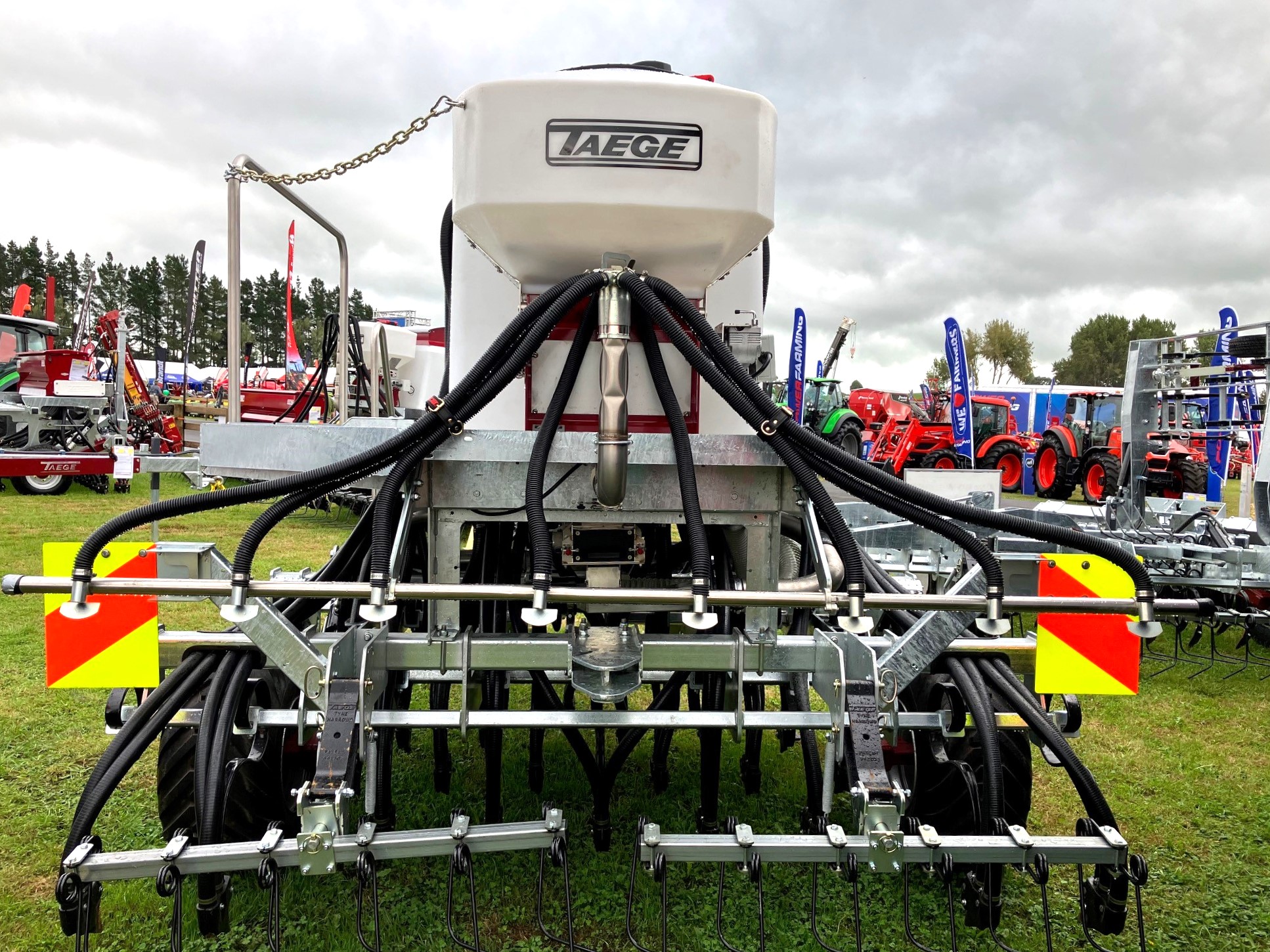

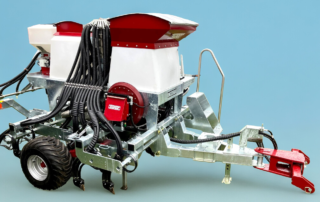

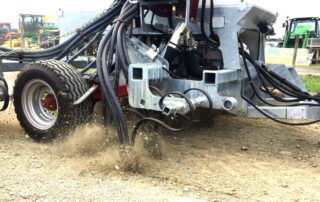

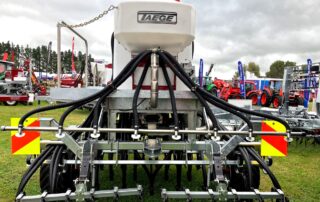

AS310 Air Seeder
Small, versatile and easily calibrated, with the same Taege quality across our range.
This machine is at home on small undulating properties, providing a practical and compact solution for smaller operations. Navigate through tricky situations and maintain accuracy on hills with this 3.1m seeder.
For those of you with smaller HP tractors up on the hill or simply after a no-frills unit.
| Model | AS310 |
|---|---|
| Size | 3.1m Air Seeder |
| Row spacing (mm) | 121 |
| Sowing width (mm) | 2980 |
| Overall width (mm) | 3025 |
| Overall height (mm) | 2750 |
| Transport width (mm) | 3000 |
| Number of drops | 25 |
| Number of tyne rows | 4.5 |
| Tyne row stagger (mm) | 570 |
| Seed box capacity (L) | 850 |
| Fert box capacity (L) | 850 |
| Working speed (kph) | 2-14 |
| Tractor HP Required (min) | 100 |
| Approx. weight (kg) | 2000 |
| Hydraulic fan | 25L per minute |
“Being smaller in size, made it easy to pull without the need to upgrade my tractor, it gave me versatility and accuracy, particularly on the hills.”

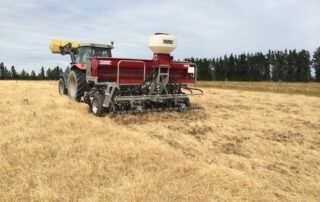

AS360 Air Seeder
Envious contour following and trash clearance makes this 3.6m seeder a true investment with its 3 metre base.
Accurate, reliable and fitted with the legendary Taege ‘S’ tynes for outstanding performance. A 3-piece boot ensures you’re getting optimal tilth and seed fertiliser placement.
This machine is packed with features and benefits, while maintaining a practical size and weight.
| Model | AS360 |
|---|---|
| Size | 3.6m Air Seeder |
| Row spacing (mm) | 121 |
| Sowing width (mm) | 3509 |
| Overall width (mm) | 3524 |
| Overall height (mm) | 2750 |
| Transport width (mm) | 3600 |
| Number of drops | 29 |
| Number of tyne rows | 4.5 |
| Tyne row stagger (mm) | 570 |
| Seed box capacity (L) | 850 |
| Fert box capacity (L) | 850 |
| Working speed (kph) | 2-14 |
| Tractor HP Required (min) | 100 |
| Approx. weight (kg) | 2200 |
| Hydraulic fan | 25L per minute |
“When I needed to drill rough, steep, stony hill country, some which has never been drilled before or had a tractor over it; the Taege Air Seeder has proven itself invaluable, for the contour following of a solid 3m drill, with the hill accuracy of air.”
Taege AS300 Series Airseeders come with:
Computerised sponge metering system which is standard on all models, providing fast, easy and accurate calibration without the risk of seed damage.
Phasing Ram System, used to give even depth of planting

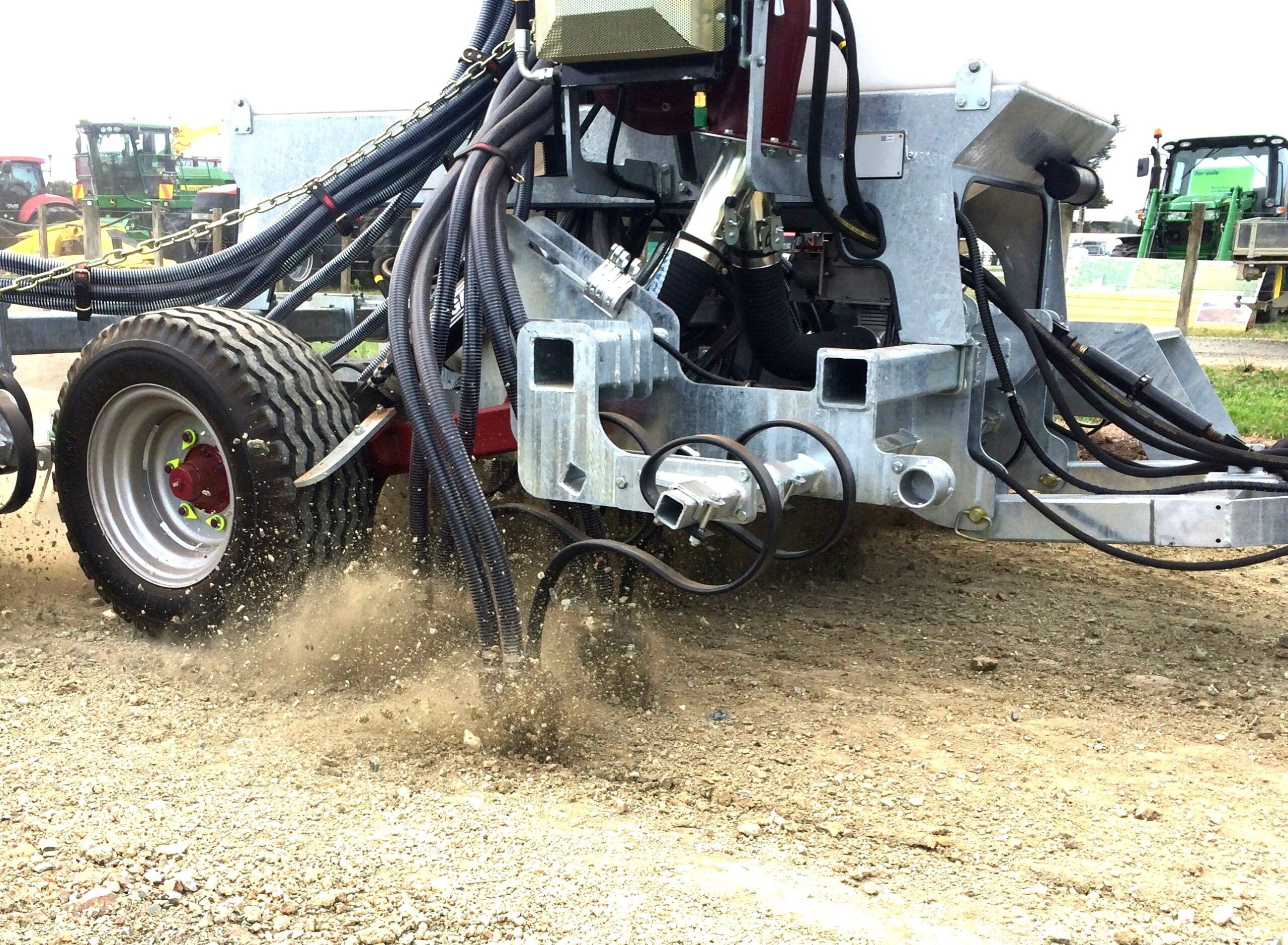

Very flexible ‘S’ Tynes set on a patented angle combined with Taege 3-piece boots and hard wearing narrow tungsten faced tips, is a vastly different set up to other tyne drills.
Strong, fully welded, hot dipped galvanised frame and brackets, ensuring the longevity of your investment.
